BASE6 LUX PANEL Cool White, Frosted Lens, Dimmable, 26-LED
SKU:
B6LP207FW
207mm Lux Panel LED Interior Light The 207mm Lux Panel LED Interior Light delivers bright, uniform illumination...
- $72.30
- $72.30
- Unit price
- per
RRP. Tax Included.

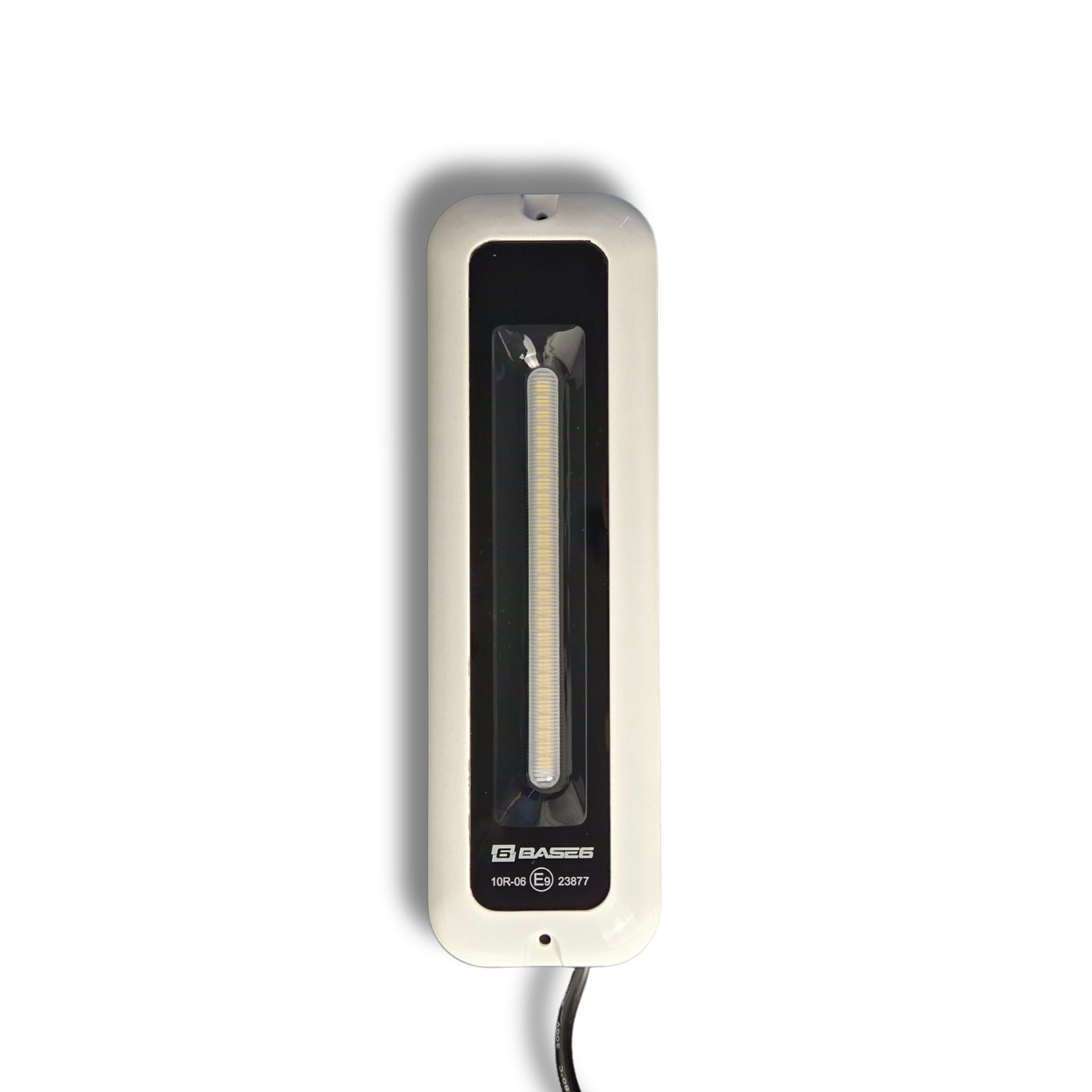

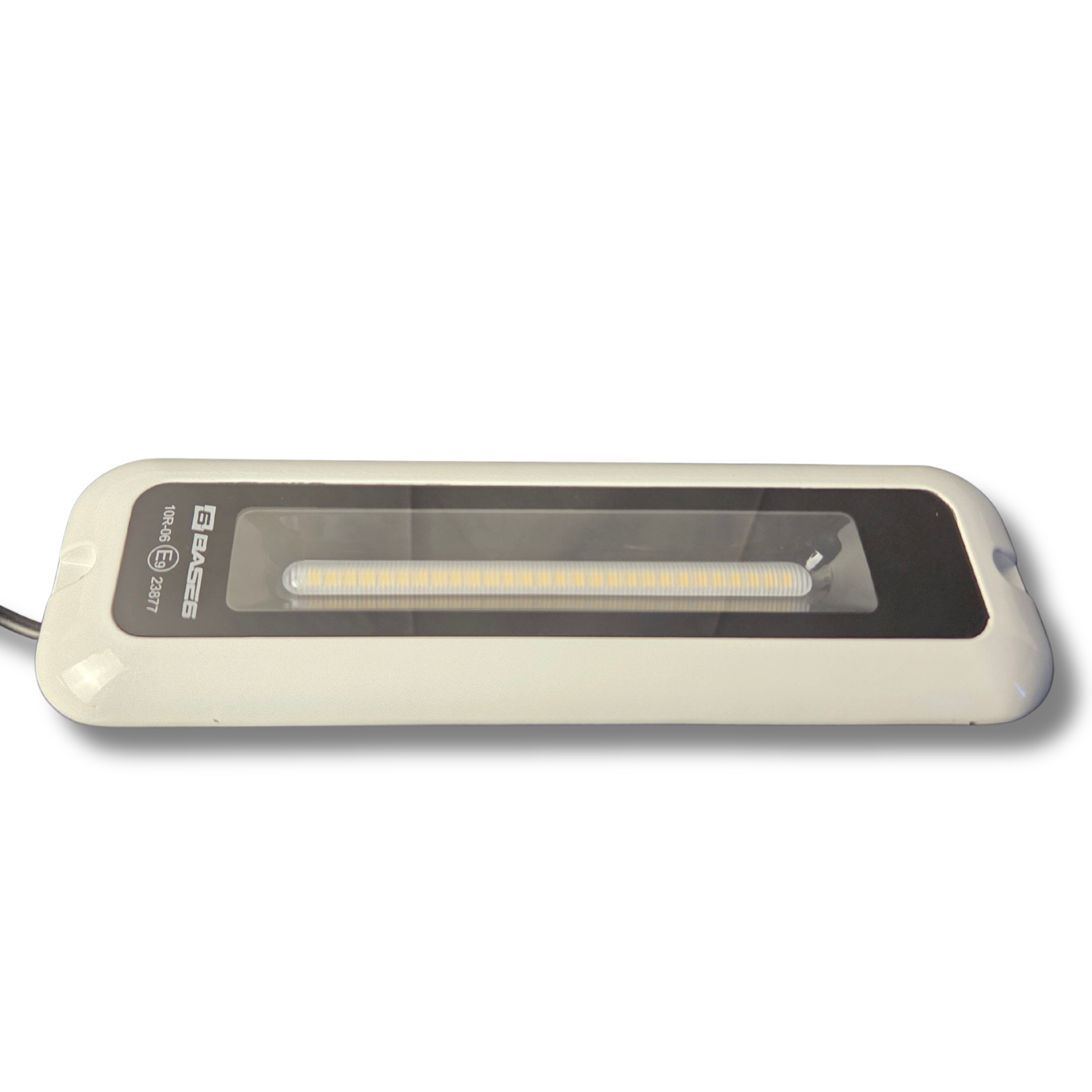

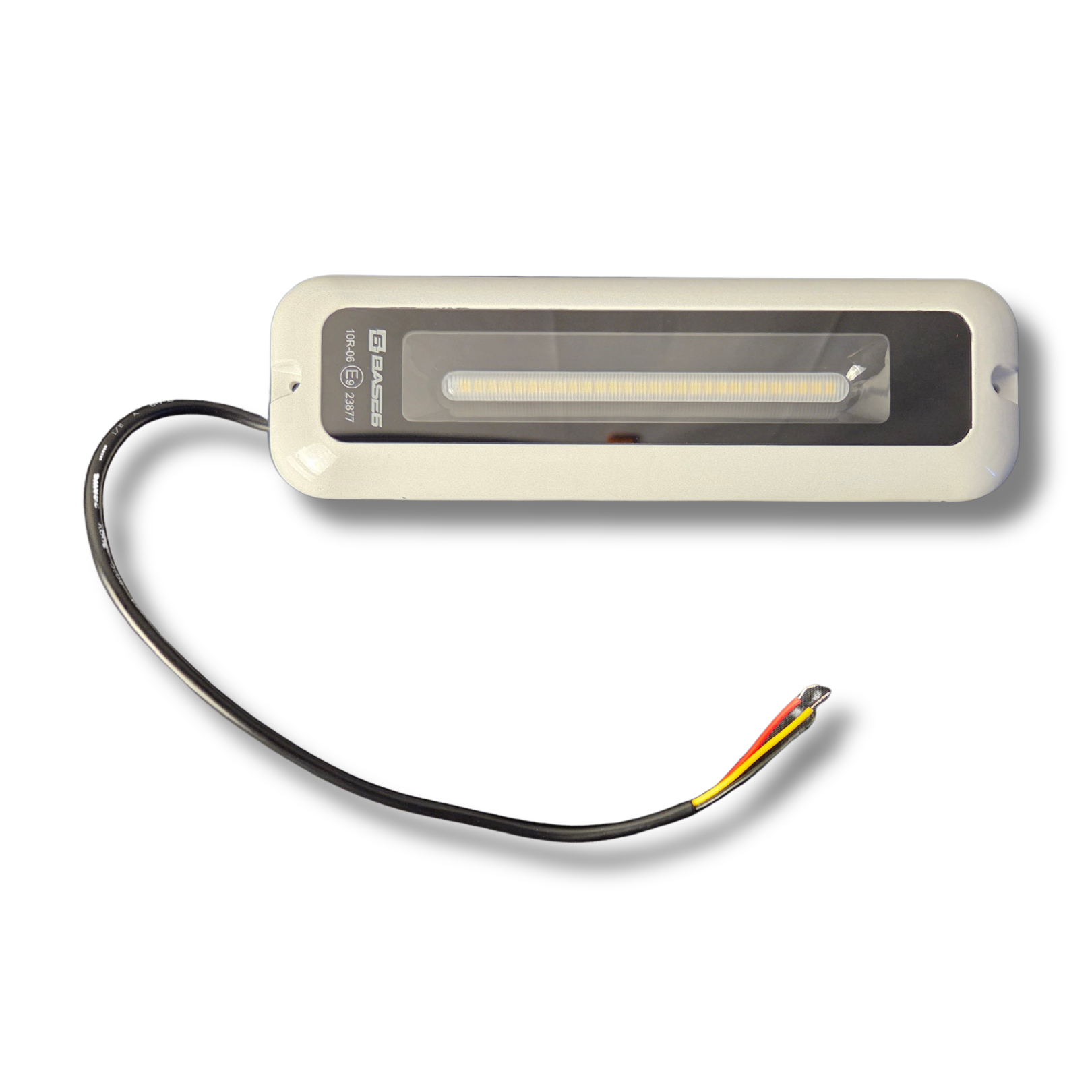

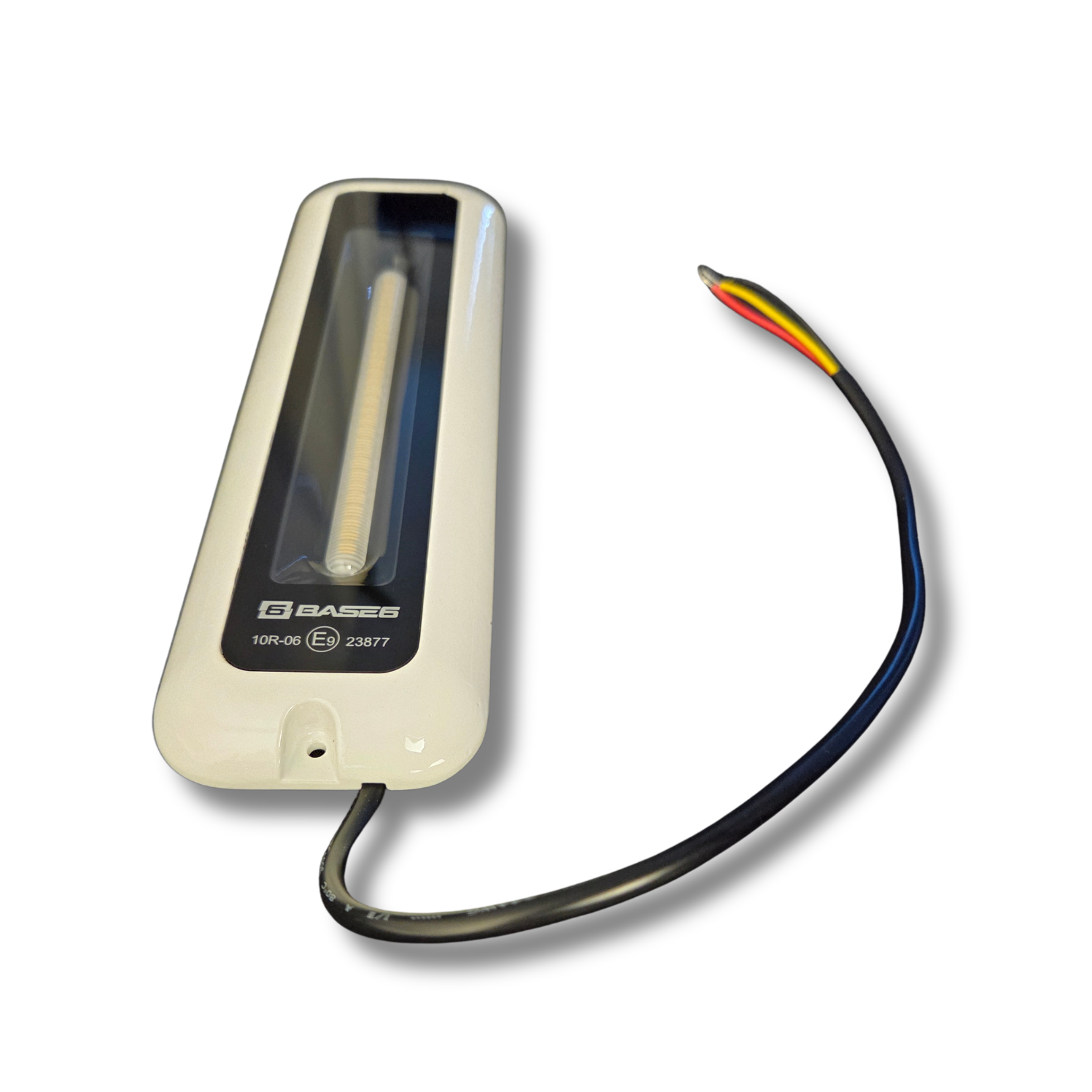

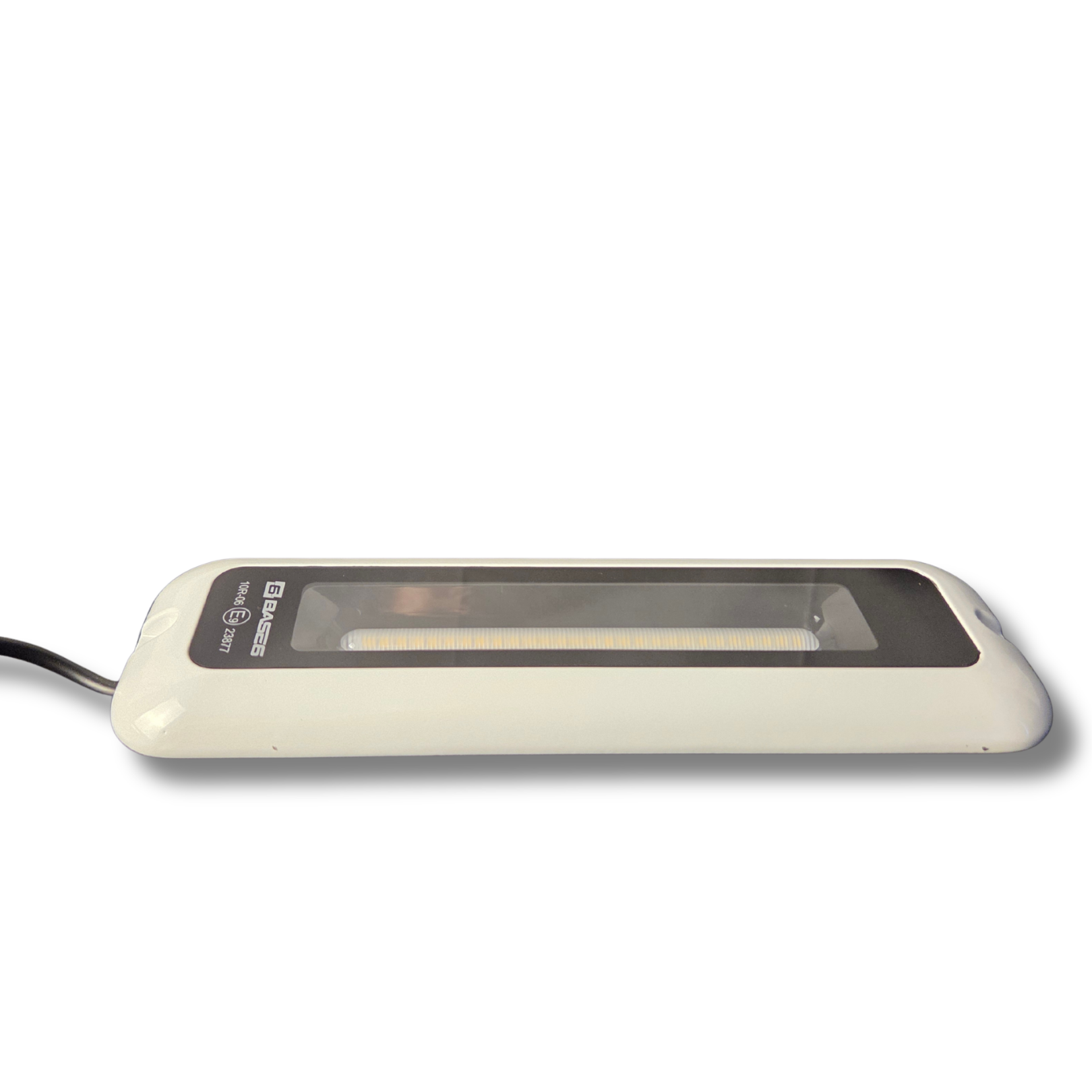

207mm Lux Panel LED Interior Light
The 207mm Lux Panel LED Interior Light delivers bright, uniform illumination in a compact, low-profile design. Featuring 26 high-quality Osram LEDs and a frosted lens, it produces a smooth, glare-free cool white light (5700K–6500K), ideal for a wide range of vehicle and marine interior applications.
With an output of 1200 lumens, this light provides excellent visibility while maintaining energy efficiency. The fully encapsulated construction and IP67/IP69K rating ensure superior resistance to moisture, vibration, and corrosion, making it reliable even in harsh environments.

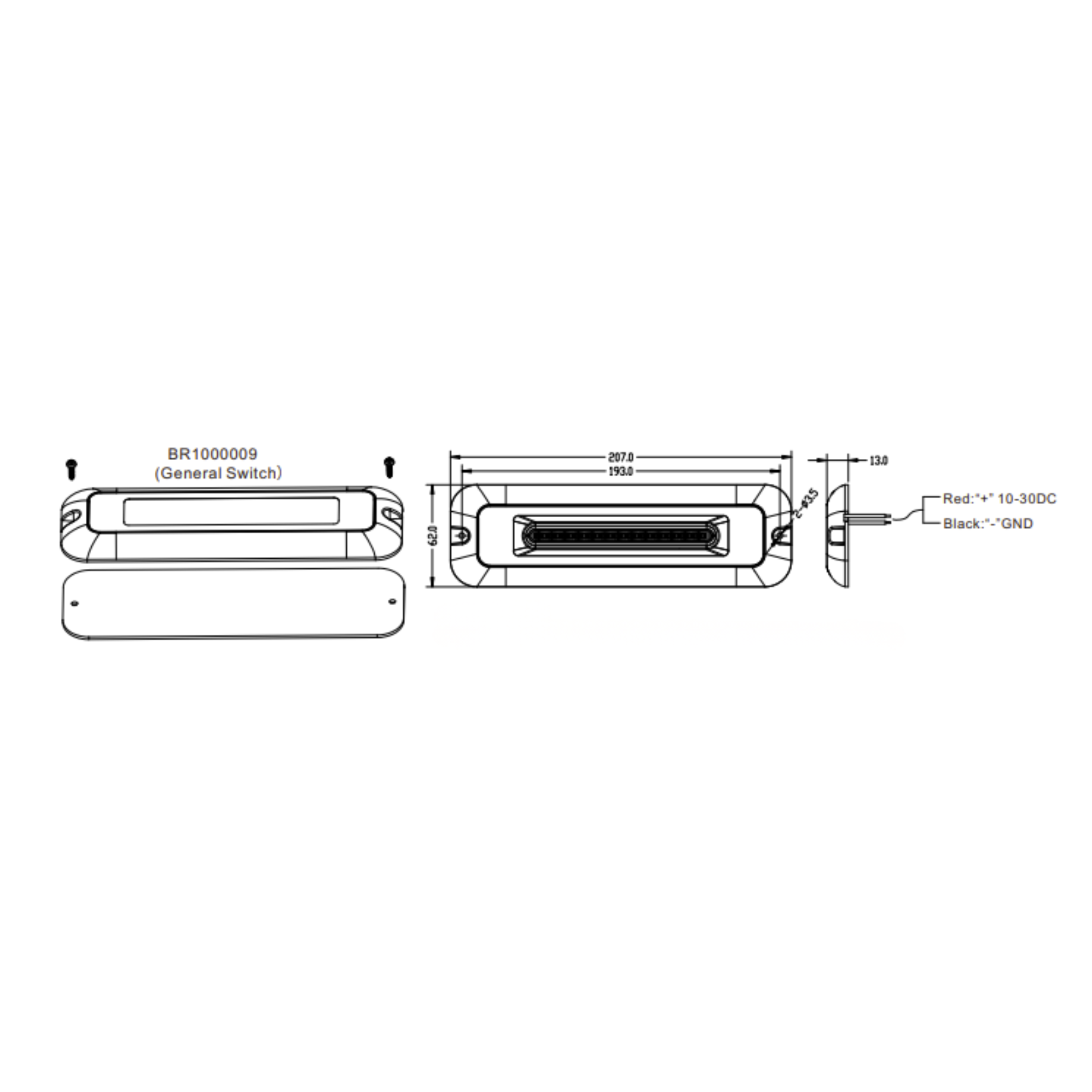

Designed for versatility, it operates on 10–30V DC systems and includes a 3-wire direct connection (positive, negative, dim), allowing for dimmable functionality. Its slim form factor (207 × 62 × 13 mm) and surface mount design make installation quick and straightforward.
Key Features:
- 26 Osram LEDs with frosted lens for soft, even light
- 1200 lumens output
- Cool white (5700K–6500K)
- Dimmable (3-wire direct connection)
- Voltage: 10–30V DC
- Current draw: 1A @ 12V / 0.5A @ 24V
- IP67/IP69K rated
- Fully encapsulated for durability
- Operating temperature: -45°C to 65°C
- Surface mount installation
- Cable length: 300 mm
- Certifications: CE, ROHS, REACH, ECE R10
- 3-year warranty
Applications:
Ideal for trucks, vans, RVs, trailers, and marine interiors.
